LED Grid Frame Ceiling Light – The Ultimate 2×4 & 2×2 Commercial Architectural Lighting Solution

1. What is an LED Grid Frame Ceiling Light?

The LED Grid Frame Ceiling Light represents the pinnacle of modern architectural lighting. As a leading LED lighting manufacturer, prillumenlight has engineered the Telaio Series to revolutionize the aesthetics of traditional flat panels.

This innovative fixture features a minimalist aluminum frame that integrates directly into standard T-Bar (Drop Ceiling) systems. Its standout feature? No ceiling tile cutting required. Simply drop the frame onto the grid and replace the original acoustic tile in the center. This design provides 360° uniform ambient light while maintaining the visual integrity of your ceiling.

2. Core Technical Advantages: Built for Contractors

15-in-1 Versatility (5-CCT & 3-Wattage Selectable)

As a professional LED supplier, we understand the challenges of inventory management. Our LED Grid Frame Lights offer maximum flexibility:

5-CCT Selectable: 3000K | 3500K | 4000K | 5000K | 6500K.
3-Wattage Adjustable: * 2×4 Model: Switch between 40W / 50W / 60W with outputs up to 7800+ Lumens.
- 2×2 Model: Switch between 20W / 30W / 40W.
Benefit: One SKU meets the lighting requirements for different floors, rooms, and ambiances, significantly reducing stock overhead.

High-Performance Driver & Dimming

0-10V Smooth Dimming: Compatible with major commercial control systems, providing flicker-free, low-glare illumination (UGR < 19).
Universal Voltage: 120-277V (with 120-347V options for the Canadian market) to meet industrial power standards.

3. Manufacturer Expertise & Factory Capacity

At prillumenlight, we are not just assemblers; we are a Direct Source Factory.

Vertical Integration: From aluminum extrusion to LED chip encapsulation, we control every step to ensure color consistency (SDCM < 5) across all Grid Frame Lights.
Massive Production Scale: With a monthly capacity of 50,000 units, our factory is a reliable partner for large-scale commercial complexes, retail chains, and school renovations.
Certified Quality: All products are ETL Listed and DLC Premium Qualified, allowing your clients to claim significant energy rebates and utility incentives.
Customization (OEM/ODM): We support custom branding, high CRI (90+) requirements, and integrated Emergency Battery Backups.

4. Technical Specifications

Item	Specification Details
Main Keyword	LED Grid Frame Ceiling Light
Available Sizes	2×4 ft (1200x600mm) / 2×2 ft (600x600mm)
Luminous Efficacy	120 – 130 lm/W (High-Efficiency Series)
Beam Angle	120° Wide Distribution
CRI	>80 (Ra)
Rated Lifetime	L70 > 100,000 Hours (Backed by proprietary thermal tech)
Operating Temp	-40°F to 113°F (-40°C to 45°C)
Protection	IP40 Dust-proof / Suitable for Dry & Damp Locations
Warranty	5-Year Global Limited Warranty (Factory Direct)

5. Professional Applications & Testimonials

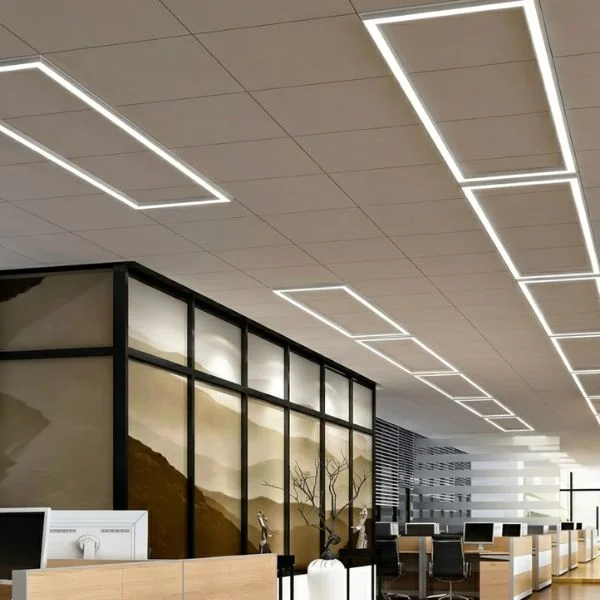

Offices & Conference Rooms: Uniform, shadow-free lighting that boosts productivity.
Retail & Hospitality: Minimalist design that elevates interior aesthetics.
Healthcare Facilities: Meets high standards for cleanliness, reliability, and visual comfort.

“As an electrical contractor, prillumenlight’s frame lights are the fastest to install. The fact that we don’t have to cut tiles saved us 40% in labor costs on our last project.” —— Purchasing Manager, Tier-1 Construction Firm.

6. Why Partner with prillumenlight?

As your strategic LED Supplier, we promise:

Wholesale Pricing: Factory-direct sales with no middleman markups.
Fast Turnaround: Local warehousing in the US/Canada with 1-3 business day shipping for in-stock orders.
Technical Support: Free Dialux lighting simulations and technical data packages for engineering bids.
