2 Inch Recessed Linear Lighting Fixture for Architectural Applications
Prillumenlight 2 inch recessed linear lighting fixtures provide a slim architectural lighting solution for commercial interiors requiring clean ceiling integration and continuous illumination.
Featuring a compact 2.00″ housing width, this recessed linear system delivers uniform, low-glare illumination while supporting flexible installation options including flanged (trimmed) and trimless (mud-in) configurations.
Designed for offices, retail environments, hospitality spaces, education facilities, and architectural projects, this LED linear fixture combines modern aesthetics with commercial-grade performance.
Key Features
- 2.00″ narrow recessed linear profile
- Flanged (trimmed) and trimless (mud-in) installation options
- 2ft / 3ft / 4ft / 5ft / 6ft / 8ft lengths
- Continuous-run capability for seamless lighting lines
- 110–120 lm/W high-efficiency LED performance
- Low-glare illumination with multiple optical options
- 120–277V North American voltage compatibility
- 0–10V dimming standard
- UL / cUL listed for US and Canadian commercial applications
Architectural 2 Inch Recessed Linear Lighting Solution
Designed for Clean Ceiling Integration
The 2 inch recessed linear lighting fixture is designed for projects requiring a minimal architectural appearance and precise lighting integration.
With its compact housing width and flexible installation options, it provides a clean alternative to traditional ceiling lighting while maintaining reliable illumination performance.
The system is suitable for both new construction and renovation projects where architects, designers, and contractors require narrow linear lighting solutions.

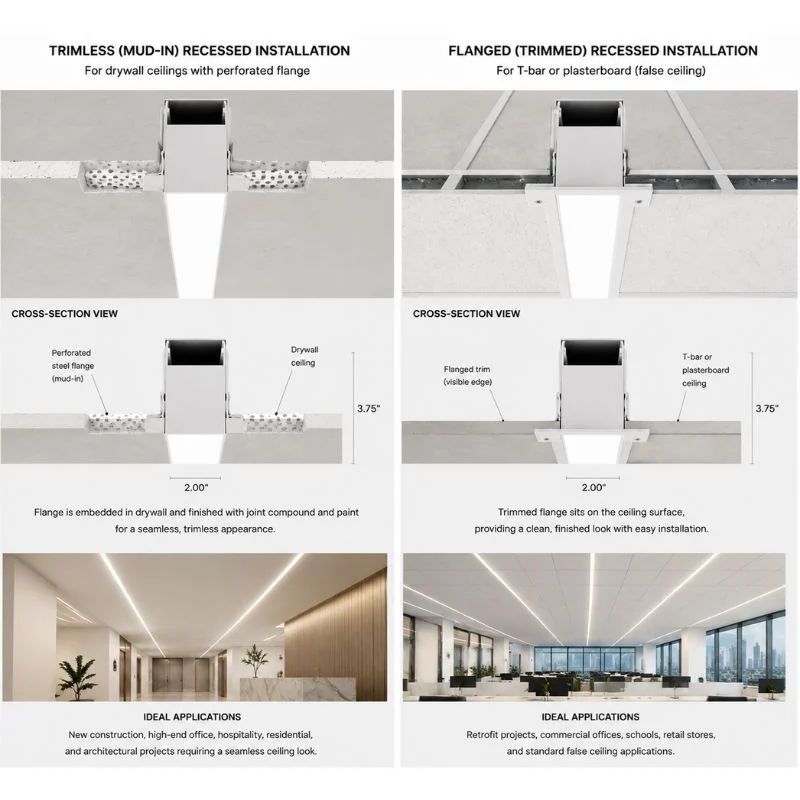

Installation Options
Trimless (Mud-In) Recessed Linear Lighting
The trimless configuration creates a seamless transition between the fixture and the ceiling surface.
This installation method is ideal for high-end architectural spaces where the lighting system needs to blend into the ceiling design.
Applications
- Premium offices
- Hospitality interiors
- Architectural projects
- Luxury residential spaces
Flanged (Trimmed) Recessed Linear Lighting
The flanged version provides a practical recessed installation solution while maintaining a clean architectural appearance.
It is suitable for commercial projects requiring easier installation and consistent ceiling integration.
Applications
- Commercial offices
- Retail stores
- Education facilities
- Public buildings
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Recessed Linear LED Fixture |
| Housing Width | 2.00″ |
| Housing Height | 3.75″ |
| Installation | Flanged / Trimless |
| Length Options | 2ft / 3ft / 4ft / 5ft / 6ft / 8ft / Continuous |
| Input Voltage | AC 120–277V |
| Power | 10W–80W |
| Luminous Efficacy | 110–120 lm/W |
| LED Source | High-output LED modules |
| CCT Options | 3000K / 3500K / 4000K / 5000K |
| CRI | ≥80 / ≥90 Available |
| Dimming | 0–10V |
| Controls | DALI / EM Battery Backup Optional |
| Housing Material | Extruded Aluminum |
| Diffuser Options | PMMA Opal / Micro-prismatic Lens |
| Finish Options | Matte White / Black / Custom RAL |
| Certification | UL / cUL |
Flexible Configuration Options
Mounting Options
The 2 inch recessed linear lighting system can be customized for different architectural applications.
Available configurations:
- Recessed
- Pendant suspended
- Surface mounted
- Wall mounted
Applications
Commercial Office Lighting
Create clean, comfortable illumination for:
- Open office areas
- Workstations
- Conference rooms
- Reception areas
Retail & Showroom Lighting
Provide modern architectural lighting solutions for:
- Retail stores
- Boutique interiors
- Commercial displays
Hospitality Lighting
Suitable for:
- Hotels
- Resorts
- Restaurants
- Lobby areas
Education & Healthcare Lighting
Designed for:
- Schools
- Universities
- Clinics
- Public buildings
Luxury Residential Applications
The slim architectural profile also supports:
- Modern homes
- High-end residential interiors
- Custom architectural projects
OEM & Custom 2 Inch Recessed Linear Lighting Solutions
Partner With a Flexible Linear Lighting Manufacturer
Prillumenlight supports OEM and private label programs for lighting brands, distributors, contractors, and project partners.
Customization options include:
Product Configuration
- Custom lengths
- Wattage packages
- CCT selection
- CRI options
- Optical solutions
Design Customization
- Housing finishes
- Custom RAL colors
- Mounting configurations
- Special project requirements
Brand Support
- Private label products
- Custom packaging
- Technical documentation
North American Commercial Lighting Support
The 2 inch recessed linear lighting fixture is designed for North American commercial applications.
Support includes:
- UL / cUL certification
- Specification sheets
- Installation documentation
- Lighting application support
FAQ
What is 2 inch recessed linear lighting?
2 inch recessed linear lighting is a narrow-profile LED fixture designed to integrate into ceilings while creating continuous architectural illumination.
What is the difference between trimless and flanged recessed linear lighting?
Trimless recessed linear lighting provides a seamless ceiling appearance, while flanged systems offer easier installation with a visible trim edge.
Where is 2 inch recessed linear lighting used?
It is commonly used in offices, retail stores, hospitality spaces, education facilities, healthcare buildings, and architectural interiors.
Can the 2 inch recessed linear fixture be customized?
Yes. Prillumenlight provides customization options including lengths, wattage, optics, finishes, mounting configurations, and private label solutions.
Is this recessed linear lighting UL/cUL certified?
Yes. The fixture is designed with UL/cUL certification support for US and Canadian commercial applications.
CTA
Looking for a 2 Inch Recessed Linear Lighting Solution?
Contact Prillumenlight for product specifications, OEM requirements, and project support.
Request a Quote
