Cylinder Pendant Lights
Architectural LED cylinder pendant lights designed for commercial interiors where lighting performance and fixture form need to work together. Choose 3-inch, 4-inch and 6-inch diameters with selectable wattage, five CCT options, 45° or 60° beam angles and suspension choices for U.S. and Canadian projects.
Architectural Cylinder Pendant Lighting for Commercial Spaces
Cylinder pendant lighting brings the luminaire below the ceiling plane, making the fixture itself part of the architectural composition. The simple cylindrical form works across contemporary offices, hospitality interiors, retail environments, reception areas and other commercial spaces where designers want a visible but restrained pendant fixture.
Three Diameters
Use 3-inch, 4-inch and 6-inch cylinders to coordinate fixture scale with ceiling height, space proportions and required light output.
Selectable Wattage
Multiple wattage settings provide additional flexibility when the same cylinder family is used across different areas of a project.
45° / 60° Optics
Choose a more controlled or wider beam according to mounting height, fixture spacing and the required illumination pattern.
5 CCT Selectable
2700K through 5000K provides flexibility for hospitality, retail, office and other commercial interior environments.
3", 4" and 6" Cylinder Pendant Lights
Select the cylinder diameter according to the visual scale and lighting requirement of the space. The coordinated family allows multiple sizes to be used within one project without changing the overall design language.
3" Cylinder Pendant Light
A compact architectural cylinder for applications where a slimmer visual scale is preferred while maintaining focused commercial illumination.
4" Cylinder Pendant Light
A balanced size for general architectural and commercial applications, suitable for both individual fixtures and repeated pendant layouts.
6" Cylinder Pendant Light
A larger architectural pendant for spaces requiring greater visual presence and a higher available lumen range.
Choose the Suspension to Match the Architecture
The suspension method changes how a cylinder pendant relates visually to the ceiling. Choose a cord-suspended configuration for a lighter appearance or a stem suspension when the project calls for a more structured connection.

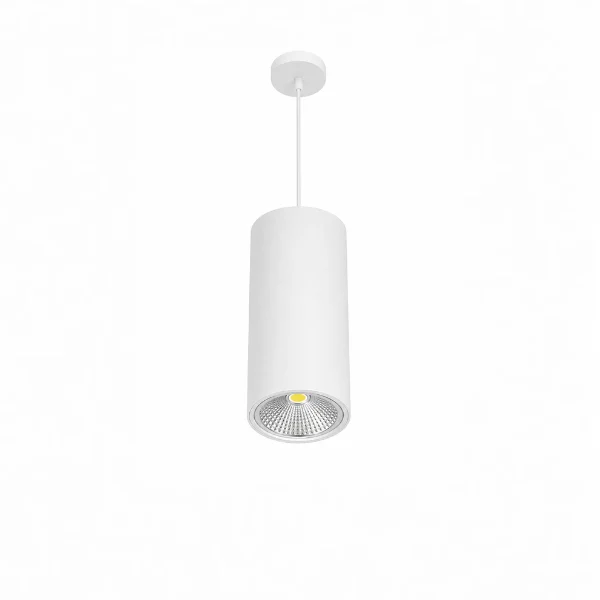

Power Cord Suspension
A visually lighter suspension approach that keeps the emphasis on the cylindrical luminaire. Well suited to contemporary commercial interiors and repeated pendant arrangements.

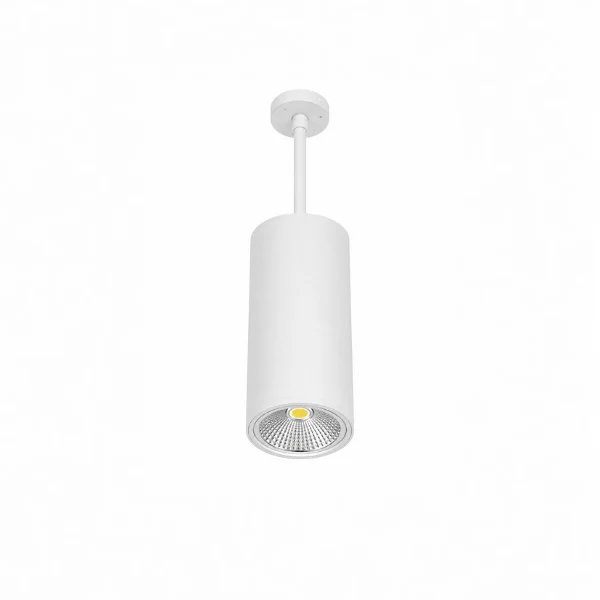

Stem Suspension
A rigid suspension option for projects that prefer a more structured architectural connection between the cylinder fixture and ceiling.
45° vs. 60° Beam Angle
Beam angle is one of the most important decisions when specifying cylinder pendant lighting. The appropriate optic depends on mounting height, spacing, target surfaces and the visual effect required by the lighting design.
45° Controlled Beam
The narrower option concentrates the distribution over a smaller area. It can be useful where the lighting plan calls for more visual focus or greater control between adjacent illuminated areas.
60° Wider Beam
The wider option spreads light across a broader area and can provide smoother coverage where general architectural illumination is the primary objective.
Final beam selection and fixture spacing should be confirmed against mounting height, illuminance targets and project photometric calculations.
One Cylinder Family. Five Color Temperatures.
Selectable CCT gives project teams more flexibility when coordinating cylinder pendant lights with interior finishes, adjacent luminaires and different functional areas.

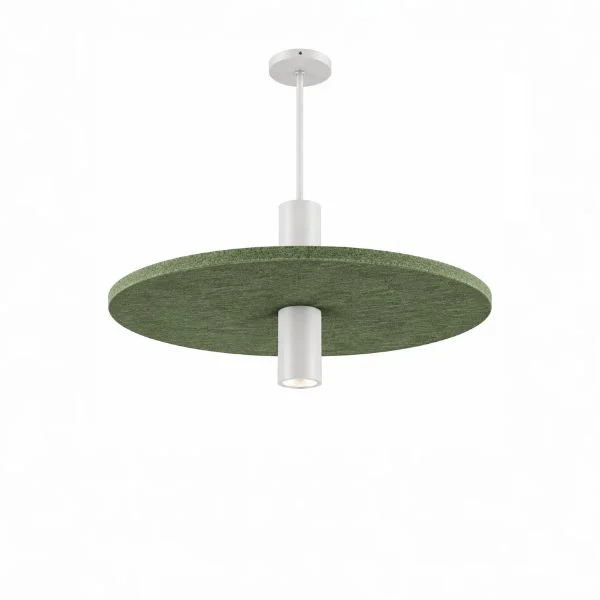

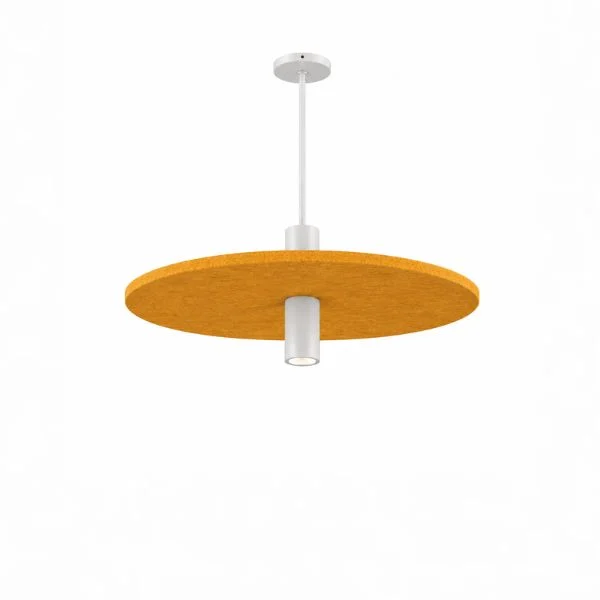

Cylinder Pendant Lights with Acoustic Panels
For interiors where lighting and acoustic design need to coexist, the cylinder pendant can be integrated with a decorative acoustic panel to create a more expressive ceiling element.
This option is particularly relevant to open offices, collaboration areas, meeting spaces, hospitality interiors and other commercial environments where acoustic materials are incorporated into the interior design.
The acoustic panel becomes part of the visual composition around the pendant cylinder while allowing the lighting family to remain consistent with standard cylinder pendants used elsewhere in the project.
Acoustic performance depends on the selected panel material, size and project configuration. Request project-specific information when acoustic performance data is required.
Cylinder Pendant Lighting in Architectural Interiors
Cylinder pendant lights work particularly well in spaces where the ceiling and lighting system are visible parts of the interior design. Fixture diameter, suspension height, beam angle and spacing can be coordinated to suit different commercial environments.
Office & Workplace
Open offices, collaboration zones, meeting areas and reception spaces where suspended lighting forms part of the interior architecture.
Hospitality
Hotel lobbies, lounges, restaurants and public spaces where fixture scale and visual appearance are important to the overall interior.
Retail & Showrooms
Pendant cylinders can be arranged individually or in repeated layouts to support merchandise areas, counters and customer circulation.
Public & Commercial Spaces
Suitable for architectural interiors that need a clean, visible pendant form instead of a concealed ceiling fixture.
Cylinder Pendant Light Specifications
Compare the three cylinder diameters before selecting the configuration for your project. Wattage and lumen output increase with fixture size while the family maintains a coordinated architectural appearance.
| Diameter | Selectable Wattage | Approx. Output | CCT | Beam Angle | Voltage | Suspension |
|---|---|---|---|---|---|---|
| 3" | 6 / 8 / 10W | 640–1,100 lm | 2700K / 3000K / 3500K / 4000K / 5000K | 45° / 60° |
120–277V 120–347V Option |
Power Cord Stem |
| 4" | 8 / 12 / 16W | 880–1,760 lm | ||||
| 6" | 15 / 20 / 25W | 1,650–2,750 lm |
Product configuration may vary by size and project requirement. Contact Prillumen for the current cut sheet, IES file and project-specific configuration before final specification.
Which Cylinder Pendant Size Should You Specify?
Diameter is not only a technical choice. It changes the visual weight of the pendant within the architecture. Consider ceiling height, viewing distance, fixture spacing and required output together.
Compact Scale
Useful when the design calls for a slimmer pendant profile or a larger number of fixtures within the layout.
Balanced Scale
A versatile architectural proportion for a broad range of commercial interiors and repeated pendant arrangements.
Stronger Presence
Provides greater visual weight and a higher available output range for larger or taller architectural spaces.
How to Specify a Cylinder Pendant Light
Start with the architectural scale of the fixture, then work through the lighting and suspension requirements. This helps keep the product selection aligned with the lighting plan.
Select Diameter
Choose 3", 4" or 6" according to fixture scale, ceiling height and required output.
Select Wattage
Match the available output range to the illuminance requirements of the project.
Select CCT
Choose from 2700K, 3000K, 3500K, 4000K or 5000K to coordinate with the interior.
Select Beam
Choose 45° for a more controlled distribution or 60° for wider coverage.
Select Suspension
Specify power cord or stem suspension according to the architectural appearance and project requirements.
Confirm Project Details
Confirm voltage, finish, quantity, controls and required technical documentation before ordering.
More Than a Pendant Fixture
Commercial lighting projects often require product evaluation, photometric information, specification confirmation and purchasing coordination before an order can move forward.
Prillumen supports lighting companies, distributors, contractors and project teams through the product selection and procurement process.
Discuss Your ProjectFixture Selection
Review diameter, wattage, CCT, beam angle and suspension configuration for the project.
IES Files
Photometric files can be provided for applicable configurations to support lighting calculations.
Technical Documentation
Cut sheets and available project documentation can support specification review and submittal.
Sample Evaluation
Samples are available for physical evaluation and project approval before volume production.
Cylinder Pendant Lights for Commercial Projects
Project quantities, samples and multiple shipping terms give lighting buyers greater flexibility when sourcing cylinder pendant lighting for U.S. and Canadian projects.
Flexible quantities can be reviewed for qualified project requirements.
Order samples for fixture evaluation and project approval before production.
Typical production lead time after order and specification confirmation.
Multiple purchasing and delivery arrangements are available according to project requirements.
Need DDP Pricing?
DDP can be quoted for eligible U.S. and Canadian project orders when buyers prefer a door-delivered purchasing arrangement.
Have a Project Below 200 Pieces?
Share the fixture mix, quantity and project information with us. Non-standard quantities can be reviewed according to the complete project requirement.
What Is a Cylinder Pendant Light?
A cylinder pendant light is a cylindrical luminaire suspended below the ceiling rather than mounted directly to or recessed into the ceiling plane. The vertical cylinder houses the light source and optical system while the suspension positions the fixture at the required height within the space.
In commercial architecture, cylinder pendant lights are often used where the luminaire is intended to remain visible as part of the interior design. Different cylinder diameters, suspension heights, beam angles and outputs can be used to coordinate the fixture with ceiling height, furniture layout and lighting requirements.
Prillumen's architectural cylinder pendant family includes 3-inch, 4-inch and 6-inch diameters with selectable wattage, five selectable color temperatures, 45° and 60° beam options, and power-cord or stem suspension configurations.
Cylinder Pendant Light FAQ
Common questions from designers, lighting companies, distributors and commercial project buyers.
What sizes are available for the cylinder pendant lights?
Prillumen cylinder pendant lights are available in 3-inch, 4-inch and 6-inch diameters. The different sizes allow designers to coordinate fixture scale and available output with the architecture of the space.
What is the difference between a 3-inch, 4-inch and 6-inch cylinder pendant?
The primary differences are fixture diameter, visual scale and available wattage and lumen output. The 3-inch model provides the most compact appearance, the 4-inch model is a versatile mid-size option, and the 6-inch model provides greater visual presence and a higher available output range.
What color temperatures are available?
The cylinder pendant family offers five selectable color temperatures: 2700K, 3000K, 3500K, 4000K and 5000K.
What beam angles are available?
45° and 60° beam options are available. The 45° option provides a more concentrated distribution, while the 60° option provides wider coverage. Final selection should consider mounting height, spacing and project photometric requirements.
Can I choose between power cord and stem suspension?
Yes. Power-cord and stem-suspended configurations are available. The appropriate option can be selected according to the desired architectural appearance and project installation requirements.
Are acoustic panels available with the cylinder pendant lights?
An architectural specialty configuration can combine the cylinder pendant with a decorative acoustic panel. This option is intended for projects where acoustic materials are incorporated into the ceiling or interior design. Acoustic performance depends on the selected panel material, dimensions and project configuration.
Are 347V cylinder pendant lights available for Canadian projects?
120–347V configurations are available for applicable cylinder pendant products. Confirm the required electrical configuration when requesting project information.
Can I order a sample before placing a project order?
Yes. Samples are available for fixture evaluation, lighting review and project approval before volume production.
What is the MOQ for cylinder pendant lights?
The standard MOQ is 200 pieces. Project quantities can be reviewed according to the required fixture mix and overall project requirements.
What is the typical production lead time?
Typical production lead time is approximately 40–50 days after the order and product specifications are confirmed.
Specify the Right Cylinder Pendant for Your Project.
Send us your fixture schedule, required quantity, ceiling height, drawings or lighting requirements. We can help review the appropriate diameter, wattage, CCT, beam angle and suspension configuration.
