Exterior Cylinder Wall Lights
Architectural exterior cylinder lights for commercial façades, entrances and outdoor circulation areas. Choose 4-inch, 6-inch or 8-inch wall-mounted cylinders with selectable wattage, 3 CCT selectable and direct or switchable up/down lighting configurations.
Architectural Wall Lighting for Commercial Exteriors
Exterior cylinder wandverlichting combine a clean cylindrical form with controlled architectural illumination. Mounted directly to the wall, the fixtures can provide downward lighting or create upward and downward illumination across the building surface.
The family includes 4-inch, 6-inch and 8-inch outdoor cylinder wall lights, allowing designers to coordinate fixture scale and lumen output with different façade heights, entrances and exterior architectural conditions.
Selectable wattage and 3 CCT selectable configurations provide additional flexibility during specification and commissioning, while 120–277V and 120–347V options support a broad range of commercial projects.
Downlight and Up & Down Cylinder Wall Lights
Choose the light direction according to the façade, circulation requirement and desired architectural effect.
Exterior Cylinder Downlight
The 8-inch-high configuration provides direct downward illumination for entrances, walkways, exterior corridors and other areas where the primary lighting requirement is below the fixture.
Up & Down Cylinder Wall Light
The 12-inch-high wall cylinder uses two light directions to create architectural illumination above and below the fixture. Its DIP switch allows the light direction to be selected for up, down or combined up-and-down operation.
One Wall Cylinder. Three Lighting Directions.
The 12-inch wall cylinder configuration uses a DIP switch to control the active light direction. This allows the same fixture platform to be configured for upward illumination, downward illumination or simultaneous up-and-down lighting.
Exterior Cylinder Wall Lights in Three Sizes
Select the cylinder diameter according to architectural scale and required output. Each size is available in an 8-inch direct configuration and a 12-inch switchable up/down configuration.
4 Inch Outdoor Cylinder Wall Light
Compact architectural wall cylinder for exterior applications where a smaller fixture profile is preferred.

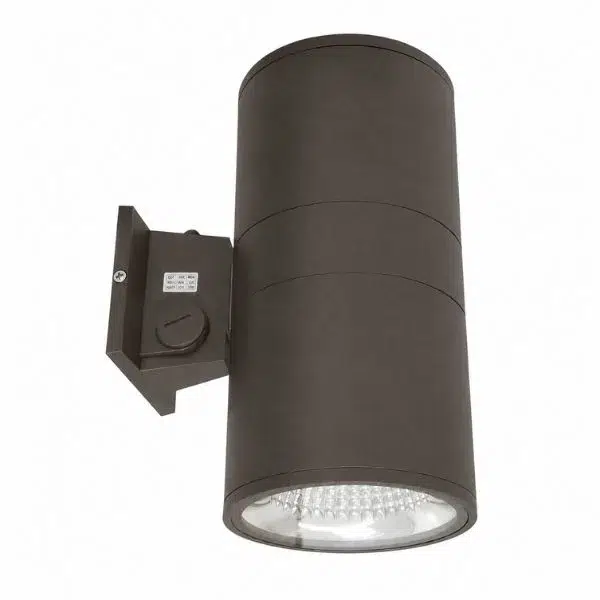

6 Inch Exterior Cylinder Wall Light
Mid-size commercial wall cylinder offering higher output while maintaining a clean architectural proportion.
8 Inch Commercial Cylinder Wall Light
Large architectural wall cylinder with the highest lumen packages in the family for larger commercial exteriors.
Exterior Cylinder Light Wattage & Lumen Options
Compare diameter, fixture height, selectable wattage and lumen output across the exterior wall cylinder family.
| Size | Configuratie | Afmetingen | Selecteerbare Wattage | Spanning | CCT | Efficiëntie | Lumenoutput |
|---|---|---|---|---|---|---|---|
| 4 inch | DIRECT | D4.0" × 8" | 8 / 12 / 16W | 120–277V / 120–347V | 3 CCT Selectable | 110–115 lm/W | 880–1,840 lm |
| 4 inch | SWITCHABLE DIRECTION | D4.0" × 12" | 15 / 23 / 30W | 120–277V / 120–347V | 3 CCT Selectable | 110–115 lm/W | 1,650–3,450 lm |
| 6 Inch | DIRECT | D6.0" × 8" | 15 / 20 / 25W | 120–277V / 120–347V | 3 CCT Selectable | 110–115 lm/W | 1,650–2,875 lm |
| 6 Inch | SWITCHABLE DIRECTION | D6.0" × 12" | 25 / 40 / 50W | 120–277V / 120–347V | 3 CCT Selectable | 110–115 lm/W | 2,750–5,750 lm |
| 8 Inch | DIRECT | D8.0" × 8" | 20 / 30 / 40W | 120–277V / 120–347V | 3 CCT Selectable | 110–115 lm/W | 2,100–4,400 lm |
| 8 Inch | SWITCHABLE DIRECTION | D8.0" × 12" | 40 / 60 / 80W | 120–277V / 120–347V | 3 CCT Selectable | 110–115 lm/W | 4,200–8,800 lm |
IP65 Exterior Cylinder Wall Lights
Exterior wall lighting must be specified for the environmental conditions of the project. The cylinder wall light family is designed for exterior architectural applications with an IP65 configuration.
The sealed construction makes these fixtures suitable for commercial building façades, entrances and other outdoor locations where exposure to weather is expected.
Black, White & Dark Bronze Cylinder Wall Lights
Coordinate the exterior wall fixture with façade materials, window frames, architectural metalwork and the overall building design.
Commercial Outdoor Cylinder Wall Lighting
Use architectural cylinder wall lights to combine exterior illumination with a consistent building design language.
Illuminate the Building and the Architecture
Up-and-down wall cylinders can create controlled light patterns on the façade while also contributing to functional exterior illumination around entrances and circulation areas.
Commercial Building Façades
Create repeated architecturale verlichting patterns across exterior walls and building elevations.
Hotel Entrances
Use wall-mounted cylinders around arrival zones, entrances and exterior hospitality spaces.
Retail Storefronts
Combine façade illumination with a visible architectural fixture around commercial storefronts.
Office Entrances
Coordinate exterior cylinders with contemporary office architecture and entrance lighting.
Exterior Corridors
Use downward or dual-direction lighting along covered walkways and circulation routes.
Multi-Family Projects
Maintain a consistent wall-lighting language across exterior common areas and building entrances.
How to Choose an Exterior Cylinder Wall Light
Select the fixture by working through size, distribution, output and electrical requirements in the context of the building elevation.
Choose 4", 6" or 8"
Match cylinder diameter to the architectural scale and required lumen package.
Choose 8" or 12" Height
Use the 8-inch direct configuration or the 12-inch switchable light-direction configuration.
Select Light Direction
For the switchable configuration, select upward, downward or combined up-and-down illumination.
Select Wattage & Output
Each size provides multiple selectable wattages to support different exterior lighting requirements.
Confirm Voltage
Specify 120–277V or 120–347V according to the project electrical system.
Choose Finish & CCT
Coordinate the finish and selectable color temperature with the building architecture and project lighting plan.
Exterior Cylinder Lighting for Project Buyers
Prillumen supports lighting companies, distributors, contractors and project teams sourcing architectural outdoor cylinder wall lights.
Send us your fixture size, quantity, voltage, required light direction and project requirements. Our team can review the configuration and prepare project pricing.
Discuss Your ProjectFixture Selection
Review 4-inch, 6-inch and 8-inch options according to architectural scale and lumen requirements.
Distribution Selection
Determine whether the project requires direct downlight or switchable up, down and up/down illumination.
Technical Documentation
Request current product documentation for project specification and review.
Sample Evaluation
Samples can be arranged for product evaluation before volume production.
Exterior Cylinder Wall Light FAQ
What sizes are available for exterior cylinder wall lights?
The exterior wall cylinder family is available in 4-inch, 6-inch and 8-inch diameters, with both 8-inch and 12-inch fixture-height configurations.
What is an up and down cylinder wall light?
An up-and-down cylinder wall light provides illumination above and below the wall-mounted fixture. The 12-inch configuration can be set by DIP switch for upward, downward or combined up-and-down illumination.
What wattage is available for a 4 inch exterior cylinder wall light?
The 4-inch direct configuration provides selectable 8W, 12W and 16W settings. The 12-inch switchable-direction configuration provides selectable 15W, 23W and 30W settings.
How many lumens does a 6 inch exterior cylinder light provide?
The 6-inch direct configuration provides 1,650 to 2,875 lumens. The 12-inch switchable-direction configuration provides 2,750 to 5,750 lumens.
What is the highest-output exterior cylinder wall light?
The 8-inch, 12-inch-high configuration provides the highest output in this family, with selectable 40W, 60W and 80W settings and a lumen range of 4,200 to 8,800 lumens.
Are 120–347V exterior cylinder wall lights available?
Yes. The wall cylinder family supports AC120–277V and AC120–347V configurations.
Are the exterior cylinder wall lights CCT selectable?
Yes. The product family is available with 3 CCT selectable configuration.
Where are outdoor cylinder wall lights commonly used?
Typical commercial applications include building façades, hotel and office entrances, retail storefronts, exterior corridors, covered walkways and multi-family common areas.
Need Exterior Cylinder Wall Lights?
Send us the required diameter, wattage, voltage, quantity and preferred light direction. We can help review the configuration and prepare project pricing.
