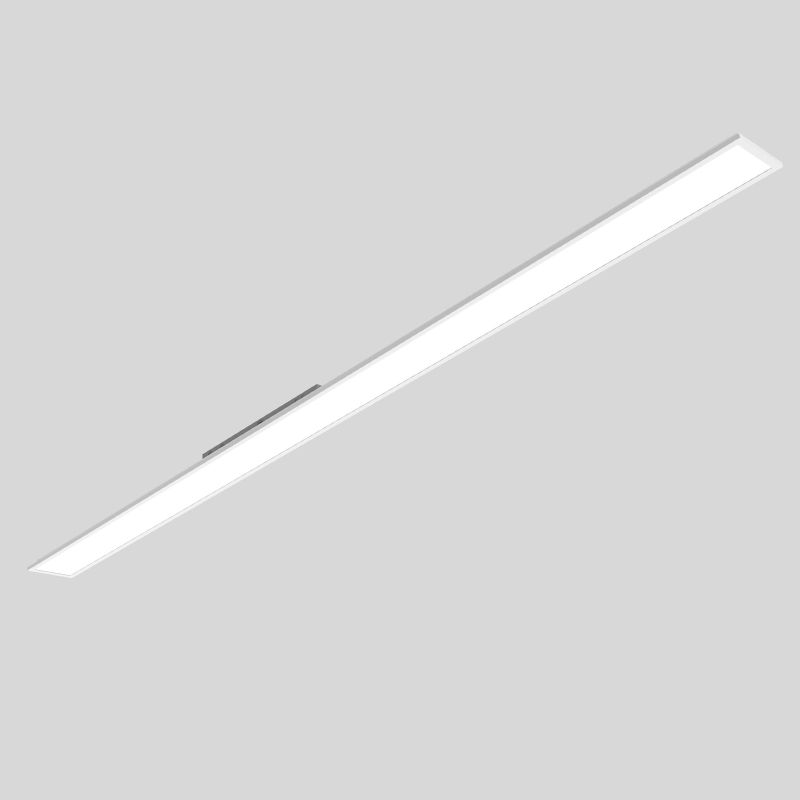

6인치 슬롯 매립 패널 조명
A wide-aperture recessed LED panel designed for open offices, retail spaces, schools and large commercial interiors where broader illumination and higher lumen packages are required.
More luminous surface for larger commercial interiors.
The 6” Slot Recessed Panel Light combines a 5.75-inch actual opening with a shallow 2.52-inch fixture height, creating a broader illuminated surface while maintaining a clean recessed ceiling appearance.
Compared with narrower slot fixtures, the wider aperture gives the luminaire greater visual presence and makes it suitable for larger rooms, open commercial spaces and projects requiring higher lumen packages.
A wider slot changes the way the fixture reads in the ceiling.
With a 5.75-inch actual opening, the 6-inch platform creates a stronger luminous element than a narrow recessed slot. The wider surface is well suited to spaces where the lighting fixture needs to contribute visibly to the architectural ceiling while also providing general illumination.
The fixture maintains a low 2.52-inch housing height and can be integrated into T-grid ceilings or drywall installations with the appropriate frame kit.
2FT, 4FT and 8FT configurations.
Use the same 5.75-inch aperture across different fixture lengths to maintain a consistent ceiling language while adjusting output for room size and lighting requirements.
Commercial performance in a recessed architectural format.
The 6-inch platform combines multiple wattage packages with commercial voltage, dimming and optical configurations.
Configure the fixture around the project.
Select the mounting method, optical treatment, control platform and finish to coordinate the 6-inch panel with the ceiling design and project requirements.
Recessed Installation
T-grid or drywall installation with frame kit, with optional surface-mounted frame configurations.
Multiple Lens Options
Opal diffuser, micro-prismatic low-glare lens, regressed lens and drop lens configurations.
Lighting Controls
Standard 0–10V dimming with DALI and emergency battery backup options for selected project configurations.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
White, black, silver and custom RAL finishes for coordination with commercial ceiling and interior design.
A wider recessed light for larger occupied spaces.
The 6-inch aperture is suited to projects where recessed lighting needs greater visual presence and broader illumination while remaining integrated with the ceiling architecture.
Specify the 6” platform for your commercial lighting project.
Send the fixture schedule, required lengths, wattages, ceiling type, control requirements and quantities. We can review the configuration and provide project-specific technical information and pricing.
6” recessed panel lighting questions.
Key information for specifiers, contractors and commercial lighting buyers.
What is the actual opening width of the 6-inch recessed panel?
The nominal 6-inch fixture has a 5.75-inch actual opening and a fixture height of 2.52 inches.
What lengths are available?
The series is available in 2FT, 4FT and 8FT configurations.
What wattages are available?
The 2FT fixture is available in 10W, 15W and 20W; the 4FT fixture in 20W, 30W and 40W; and the 8FT fixture in 60W, 70W and 80W.
Is the 6-inch recessed panel dimmable?
Yes. The standard electrical platform supports 0–10V continuous dimming.
What ceiling types can it be installed in?
The fixture is designed for recessed installation in T-grid ceilings or drywall ceilings using the appropriate frame kit.
What color temperatures are available?
Available configurations include 3000K, 3500K, 4000K and CCT-selectable options.
Is the fixture UL Listed?
Yes. The series is UL Listed, with DLC available as an optional configuration.
Where is a 6-inch slot recessed panel typically used?
Typical applications include open offices, education, healthcare, retail, libraries, hospitality, airports and other large commercial interiors.
Need specifications or project pricing?
Send us your fixture length, wattage, quantity, ceiling type and control requirements for a project-specific configuration.
