Colgante lineal de LED con lente caída

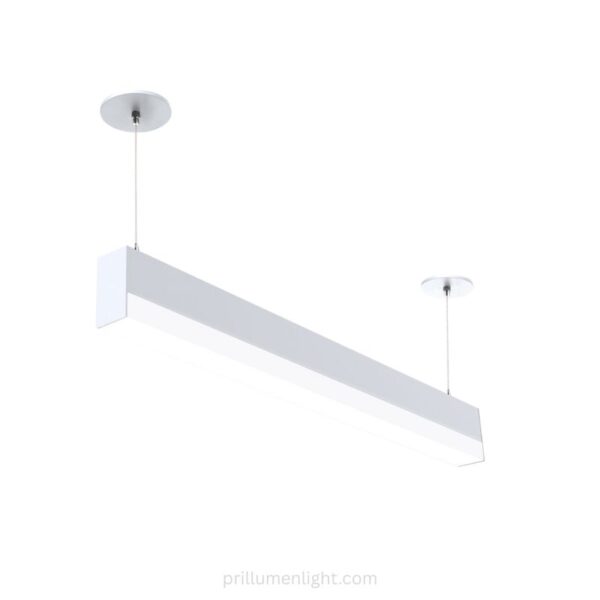

A 2.75-inch architectural colgante lineal with a luminous drop lens extending below the aluminum profile. The exposed diffuser adds visible light from the side as well as below, creating a softer and more dimensional lighting element for offices, retail, hospitality and other commercial interiors.
More Than a Downward Line of Light
A standard colgante lineal is often read primarily from below. The drop lens changes that relationship by extending the luminous diffuser below the aluminum housing, making the illuminated surface more visible throughout the room.
This creates a softer architectural presence and allows the fixture to contribute visually from multiple viewing directions— particularly useful in open offices, hospitality spaces, retail environments and high-ceiling commercial interiors.
For projects where the pendant itself is intended to become part of the interior design, the drop lens provides a distinct alternative to a conventional flush or regressed optic.
Why Extend the Lens Below the Fixture?
With a flush linear diffuser, most of the visible luminous surface is concentrated at the bottom aperture of the fixture. The housing remains the dominant element when the luminaire is viewed from the side.
The drop lens extends beneath the aluminum profile, increasing the visible luminous area. The light therefore becomes more noticeable from lateral viewing positions instead of appearing only as a downward illuminated line.
This makes the fixture particularly useful when the lighting design calls for a softer luminous presence within the architecture—not simply illumination on the work plane.
Light Concentrated Below
The luminous surface remains close to the bottom opening, creating a clean linear appearance primarily viewed from below.
Visible Luminous Volume
The diffuser extends below the housing, creating a larger visible luminous surface from both below and surrounding viewing positions.
What the Drop Lens Adds to a Project
The difference is not simply the shape of the diffuser. Extending the luminous surface changes how the fixture is perceived throughout the space.
Visible Side Glow
The extended diffuser makes the illuminated surface more visible when the pendant is viewed from the side.
Softer Visual Presence
The luminous lens creates a less mechanical visual character than an aluminum profile with only a bottom aperture.
Architectural Definition
Continuous luminous lines can reinforce circulation paths, furniture layouts and spatial zones.
Project Flexibility
Configure lengths, CCT, CRI, controls, distribution and finish around the project schedule.
Designed to Be Seen, Not Just to Illuminate
In many architectural projects, cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits is visible from across the room. This means the appearance of the fixture while illuminated can matter almost as much as the light delivered to the work surface.
The drop lens turns the lower portion of the fixture into a continuous luminous element, helping the pendant maintain a strong visual presence across offices, retail environments, restaurants and public spaces.
Functional Downlight
The lower luminous surface delivers illumination to work planes, tables, circulation areas and commercial spaces.
Visible Luminous Edge
The dropped diffuser remains visible from lateral positions, adding brightness to the fixture's architectural form.
Continuous Light
Connected sections can create longer luminous lines that organize larger architectural spaces.
Fixture as an Element
The illuminated diffuser gives the pendant a stronger decorative presence within the ceiling composition.
Direct or Direct / Indirect Lighting
Select the distribution according to ceiling conditions, required illumination and the desired ambient character of the project.
Directa
Direct distribution focuses the primary fixture output below the pendant while the drop lens maintains a visible luminous surface around the lower edge of the fixture.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
Add uplight toward the ceiling to combine functional downward illumination with softer ambient light above the fixture.
Turn Individual Pendants Into Architectural Lines
For larger commercial interiors, the lighting layout often extends beyond a single standard fixture length. Continuous-run configurations allow multiple sections to form longer lines that follow the architecture.
Runs can align with open-office desks, circulation paths, meeting zones, retail aisles or other spatial elements to create a stronger connection between the lighting system and the interior plan.
Standard lengths from 1FT through 8FT provide the building blocks for project layouts, with continuous configurations available where longer lines are required.
Build the Fixture Around the Project
Define the architectural requirements first, then configure length, distribution, color quality, controls and finish around the project fixture schedule.
1FT–8FT & Continuous
Use individual fixture lengths or configure longer continuous architectural runs.
Direct / Direct-Indirect
Coordinate the light distribution with ceiling conditions and the desired ambient effect.
2700K–5000K
Select the color temperature to coordinate with interior materials and project requirements.
CRI 80+ / 90+
Specify the color-rendering level according to the visual requirements of the project.
0–10V / DALI
Coordinate dimming with the solución de iluminación comercial control strategy.
White / Black / Silver / RAL
Coordinate the fixture body with ceiling materials, furniture and architectural finishes.
Where a Visible Luminous Pendant Adds More to the Space
Drop lens linear lighting works especially well in interiors where suspended fixtures remain visible throughout the space and are intended to contribute to the architectural composition.
Offices & Workspaces
Use suspended luminous lines above workstations, meeting areas and circulation zones to combine functional lighting with architectural definition.
High-Ceiling Commercial Spaces
Suspension brings the light source closer to the occupied zone while the visible drop lens maintains a strong luminous presence within larger volumes.
Continuous & Geometric Runs
Coordinate longer linear layouts with furniture, circulation paths and architectural zones to reinforce the organization of the interior.
Restaurants & Social Spaces
The visible luminous diffuser adds another layer of ambient brightness and gives the suspended fixture a softer decorative character.
Useful Where Vertical Brightness Matters
Retail lighting is not only about horizontal illumination on the floor. Shelving, displays, signage and merchandise create vertical surfaces that also contribute to how bright and welcoming the space feels.
Because the drop lens extends below the housing, its luminous surface is visible from a wider range of viewing positions than a conventional bottom-only diffuser.
This makes drop lens linear pendants an option worth considering for retail aisles, showrooms and other commercial environments where the lighting itself remains visually present in the space.
Drop Lens Linear LED Pendant Specifications
Use the information below for initial project selection. Final configuration should be coordinated with the fixture schedule and current project documentation.
| Especificación | Available Configuration | Project Consideration |
|---|---|---|
| Fixture Type | cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits Linear Pendant | Suspended commercial interiors |
| Perfil | 2.75″ de ancho × 5.11″ de alto | Includes extended drop lens profile |
| Longitudes | 1FT / 2FT / 3FT / 4FT / 5FT / 6FT / 8FT / Continuous | Individual or continuous layouts |
| Optic | Lente de caída | Visible luminous surface below housing |
| Distribución | Direct / Direct-Indirect | Select according to project lighting concept |
| Voltaje | 120–277VAC / 120–347VAC | Coordinate with project electrical system |
| CCT | 2700K–5000K | Coordinate with interior design |
| CRI | 80+ / 90+ | Select according to color-quality requirement |
| Atenuación | 0–10V / DALI | Coordinate with project controls |
| Acabado | Blanco / Negro / Plata / RAL personalizado | Coordinate with architectural palette |
| Certificación | UL Listed / DLC | Confirm selected project configuration |
| Garantía | 5 Años | Commercial project support |
How to Specify the Drop Lens Pendant
A clear project schedule helps coordinate the architectural layout, electrical requirements, controls and production configuration before ordering.
Define the Layout
Determine whether the project requires individual pendants, continuous runs or an architectural geometric arrangement.
Select Fixture Length
Coordinate standard sections and continuous runs with ceiling dimensions, furniture and circulation paths.
Choose Distribution
Select direct or de iluminación directa/indirecta according to ceiling conditions and the desired ambient effect.
Set CCT & CRI
Coordinate color temperature and color rendering with interior materials and project requirements.
Confirm Voltage & Controls
Define project voltage and specify 0–10V or DALI control requirements.
Confirm Finish
Choose white, black, silver or a custom RAL finish to coordinate with the architectural palette.
From Lighting Concept to Fixture Schedule
Architectural linear projects require coordination between fixture lengths, suspension locations, electrical feeds, continuous runs, light distribution and controls.
Send us your reflected ceiling plan, fixture schedule or required linear runs. We can help organize the selected configuration for technical review and project quotation.
Drop Lens Linear Pendant Lighting FAQ
What is a drop lens linear LED pendant?
A drop lens linear LED pendant uses a diffuser that extends below the aluminum fixture housing. This creates a larger visible luminous surface than a conventional flush-bottom linear pendant and gives the fixture a softer architectural appearance.
What is the difference between a drop lens and a flush lens?
A flush diffuser remains close to the bottom aperture of the fixture. A drop lens extends below the housing, making more of the illuminated diffuser visible when the fixture is viewed from surrounding positions.
What is the difference between a drop lens and a regressed lens?
A regressed lens is positioned deeper inside the fixture profile to provide additional visual shielding. A drop lens moves in the opposite direction, extending below the housing to create a more visible luminous element within the space.
Can the fixture provide direct and indirect lighting?
Yes. Direct and direct/indirect configurations are available. The appropriate distribution should be selected according to ceiling conditions and the lighting requirements of the project.
Can drop lens linear pendants be connected into continuous runs?
Yes. Continuous-run configurations are available for projects requiring longer uninterrupted lines of la iluminación arquitectónica.
What fixture lengths are available?
Available lengths include 1FT, 2FT, 3FT, 4FT, 5FT, 6FT and 8FT, with continuous configurations available for longer project runs.
What input voltages are available?
The fixture is available for 120–277VAC and 120–347VAC electrical systems. Confirm the required voltage when preparing the project fixture schedule.
What color temperatures and CRI options are available?
The fixture supports color temperatures from 2700K through 5000K with CRI 80+ and 90+ options.
Does the drop lens pendant support dimming?
Yes. 0–10V and DALI dimming options are available for compatible solución de iluminación comercial control systems.
Where are drop lens linear pendants commonly used?
Typical commercial applications include offices, retail stores, supermarkets, hospitality spaces, hotels, classrooms, healthcare facilities and public circulation areas.
What information is needed for a project quotation?
Provide the project quantity, fixture lengths, continuous-run layout if applicable, light distribution, voltage, CCT, CRI, controls, finish and any technical documentation required for project review.
Planning a Drop Lens Linear Lighting Project?
Send us your fixture schedule, reflected ceiling plan or required linear runs. We can review fixture lengths, light distribution, voltage, controls and project configurations for technical review and quotation.
